Mercedes Benz Antenna Parts
For: S500, of the Following Years
     1994-1999

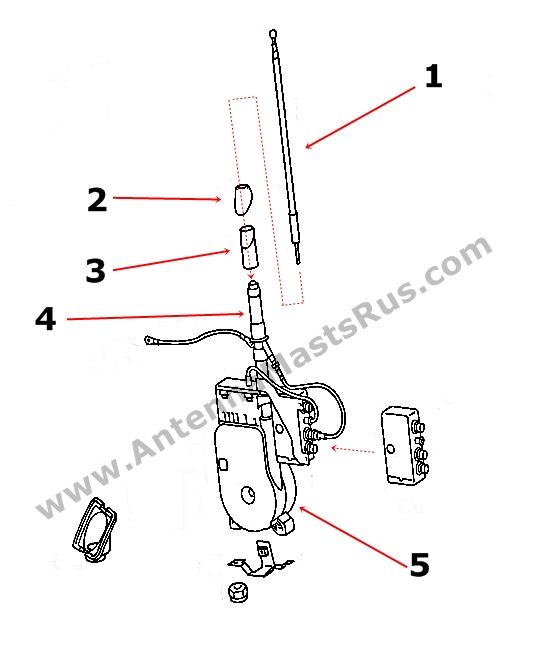

Antenna Mast *
Black Tip

Click Photo for + size


( 1 ) ... S500 Sedan/Coupe BLACK TIP Mast

    This is a "BRAND NEW" OEM  ( Original Equipment Manufacturer not aftermarket ) HIGH QUALITY Mercedes S500 POWER ANTENNA REPLACEMENT MAST, for your Factory S500 Power Antenna.... This Antenna is for the Mercedes Cellular Ready Power unit with the Phone Feature.

    This is the Part that is needed If your S500 Power Antenna MOTOR RUNS, ... or makes a clicking, grinding sound .... BUT the Mast doesn't go up or down, "OR" your Mast is "BENT" from the Car Wash or Vandalism..... This PART will Repair your S500 Power Antenna back to a ""WORKING POWER ANTENNA"" ... This is Really a very simple part for YOU yourself to Install,...

 * See the Special note Below.

Fits the following Mercedes S500 Models
With a Factory Power Antenna


1. How do I know that I need JUST a NEW Mast ???
2. How to Replace this Mercedes Mast ?
3. How to Remove the Mercedes Outside Nut  ?


$13.50

Upper Seal

PHOTO COMING
Click Photo for + size



( 2 ) ... S500 Upper Seal


   This is a Brand NEW Upper Seal.  This model car uses a two part seal system, this upper seal snaps into the lower seal.

 Fits the following Mercedes S500 Models:
With a Factory Power Antenna


Lower Seal

PHOTO COMING
Click Photo for + size



( 3 ) ... S500 Lower Seal


   This is a Brand NEW Lower Seal.

 Fits the following Mercedes S500 Models:
With a Factory Power Antenna


Storage Tube

PHOTO COMING
Click Photo for + size



( 4 ) ... S500 Antenna Tube


   This is a Brand NEW Antenna Storage Tube.  On this power unit the storage tube unscrews from the gear case.

 Fits the following Mercedes S500 Models:
With a Factory Power Antenna


Power Antenna

PHOTO COMING
Click Photo for + size



( 5 ) ... S500 Power Antenna

 Fits the following Mercedes S500 Models:
With a Factory Power Antenna

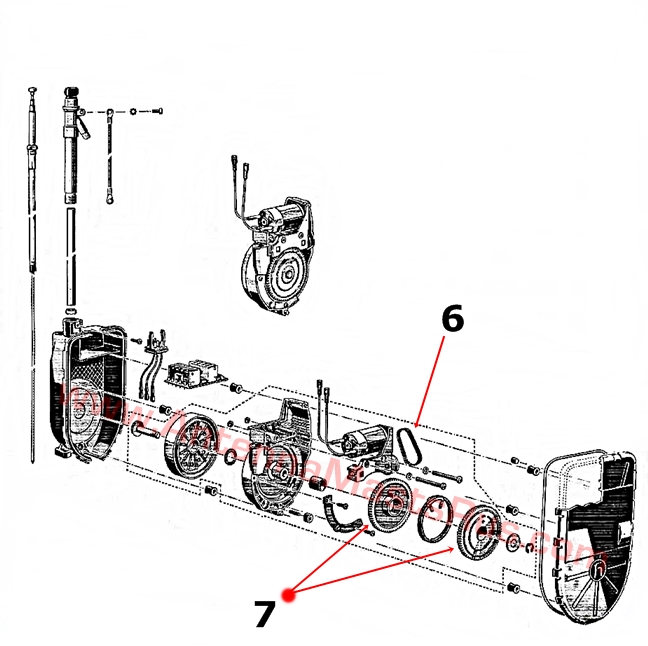

Drive Belt

PHOTO COMING
Click Photo for + size



( 6 ) ... S500 Power Antenna BELT


   This is a Brand NEW Drive Belt, it engages from the motor to drive gear.

 Fits the following Mercedes S500 Models:
With a Factory Power Antenna


Gear Set

Click Photo for + size



( 7 ) ... S500 Power Antenna GEAR SET


   This is a Brand NEW Power Antenna Gear Set Kit for your Factory S500 Hirschmann Power Antenna Model AUTA . This is the NEW UPDATED gear set, that consists of Gear part # 721095-001 & 721094-001.  This updated gear set is improved in that the tab that generally breaks in the center for the clutch has been redesigned, so as not to break as easy.   This kit consists of the two above gears part #....

    As we have been rebuilding these Hirschmann Power antennas we find that this is a common part that breaks in these units, so if your antenna mast cable is not broken and the motor runs and the mast doesn't go up or down, this is generally the part that will be broken.

    If you have any Questions on the Service of this part give us a Call at ... 920-686-0644

 Fits the following Mercedes S500 Models:
With a Factory Power Antenna


$17.00

* NOTE:  All Antenna Masts Come With  Easy to Follow "DETAILED " Installation Instructions so That YOU Can do it "YOURSELF " in a Matter of Minutes !!!!  PLUS COMES WITH A FREE TECH HOT LINE FOR ADDITIONAL HELP IF NEEDED  !!!!
