1. Remove the power unit that is in your Camry Sedan, keeping tract how in general the unit is mounted so you have an idea how the new one is to fit. The unit is held in by the outside trim nut, where the mast comes out of the car, and two 10 mm bolts at the base of the power unit. The external nut is removed with a small needle nose pliers by sticking the nose of the pliers into the slits and turning off counterclockwise.

MOUNTING:

2. Take the new antenna and install the unit onto your quarter panel of your car.

3. Next take the supplied strap with holes, and mount one end of it to one of the lower tabs of the new power unit. Now bend the other end over to where the original one was mounted and bolt it tight.

ELECTRICAL:

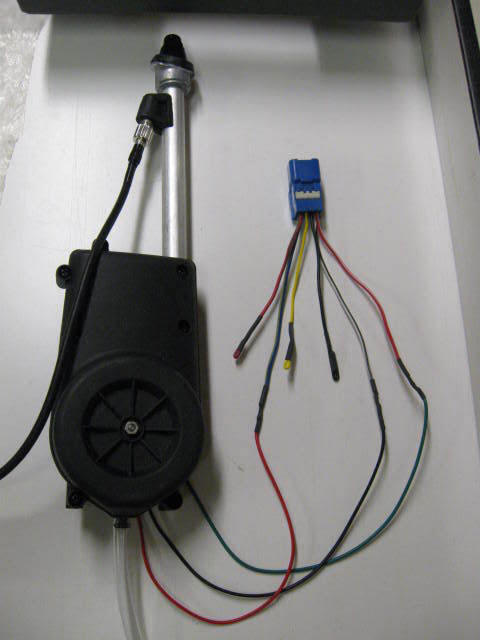

4. At the plug where your Original Factory Power unit, cut off the square plug BLUE plug, leave enough wire on that plug so you can connect it to the three wires that the new power unit has.  ( Photo of plug below )

      Connect the wires this way.

     Car End                   Antenna

Blue/Yellow .......to........ RED
Red/White .........to........ GREEN
White/Black ......to........ BLACK
